XTRAFLY
Fulcrum 13pro
Introduction

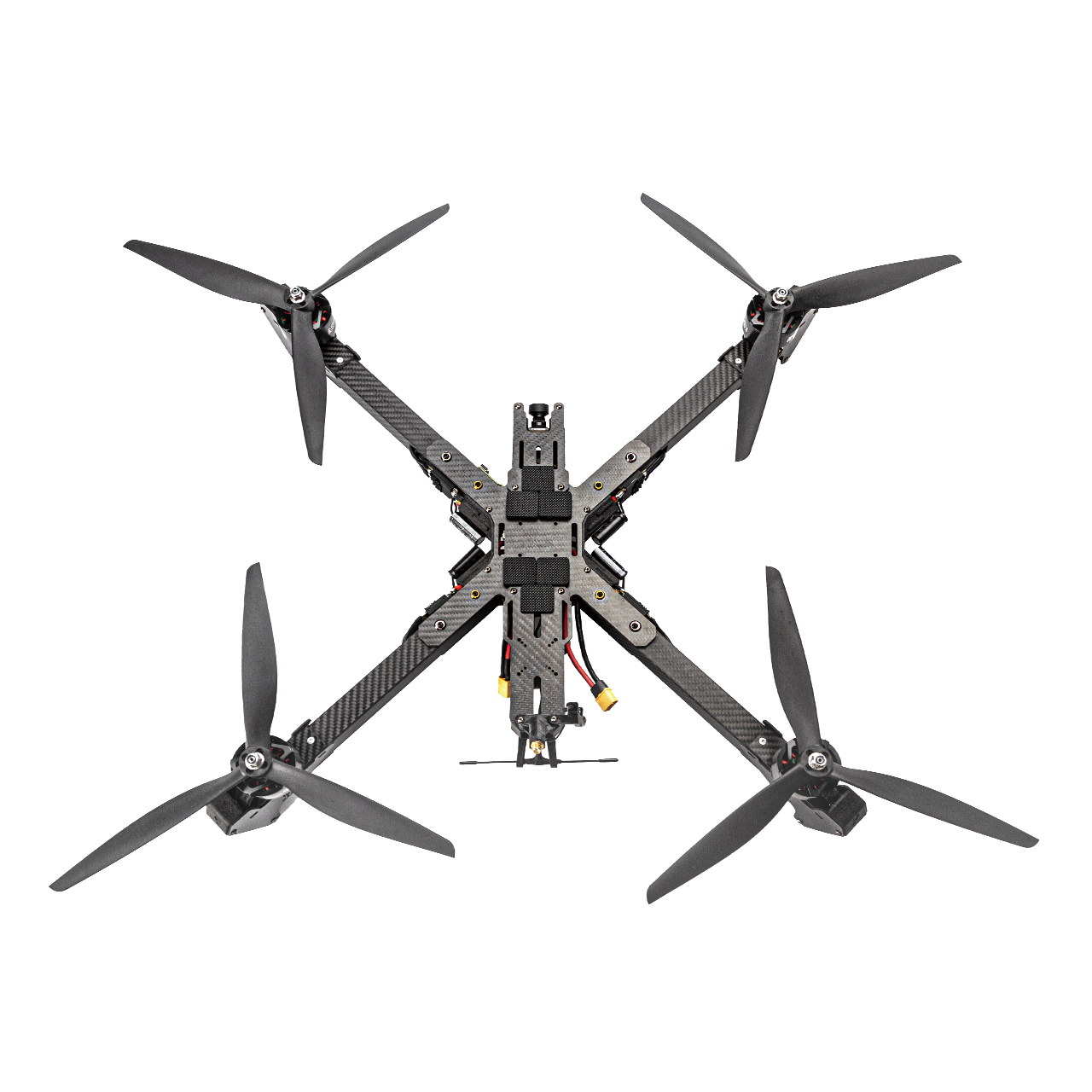

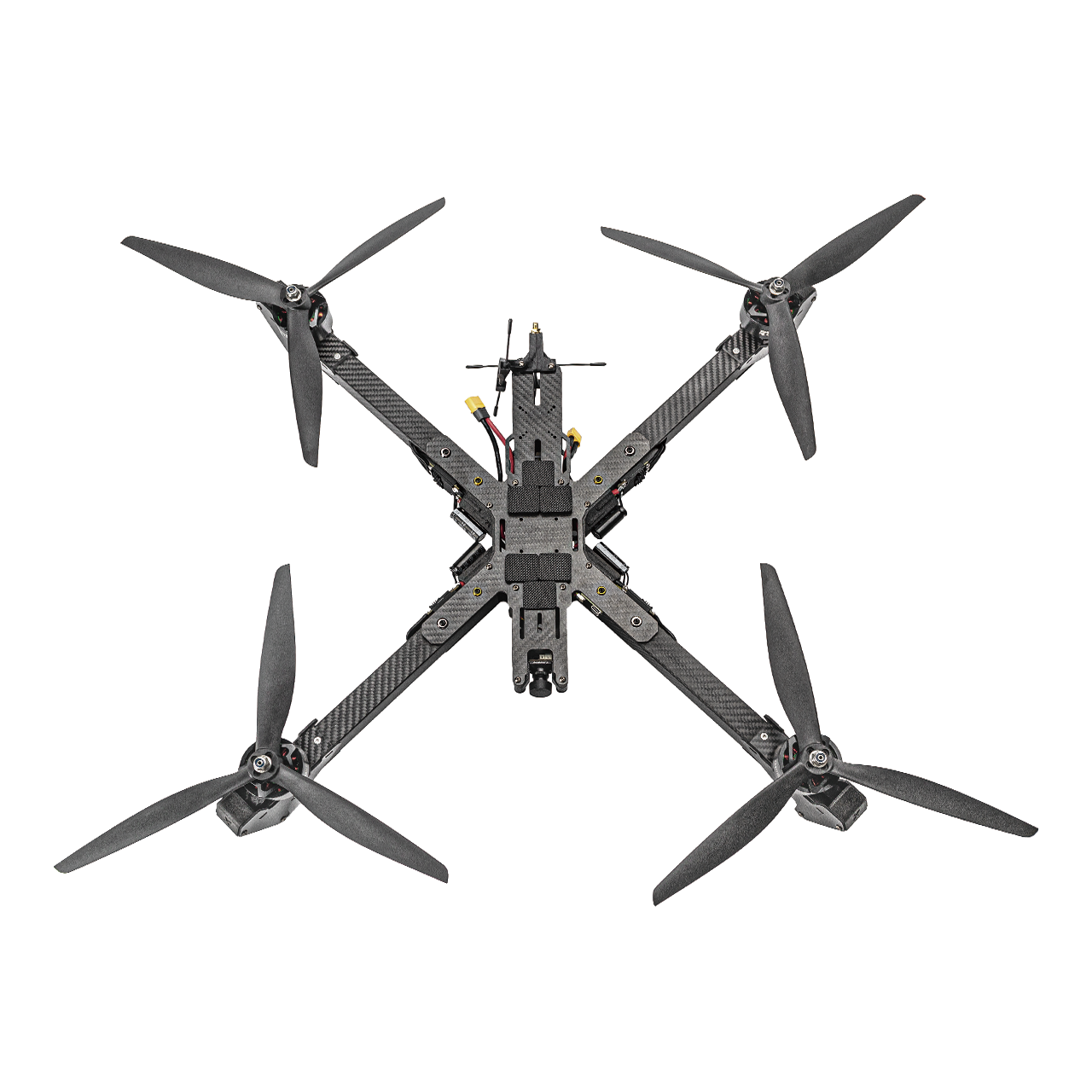

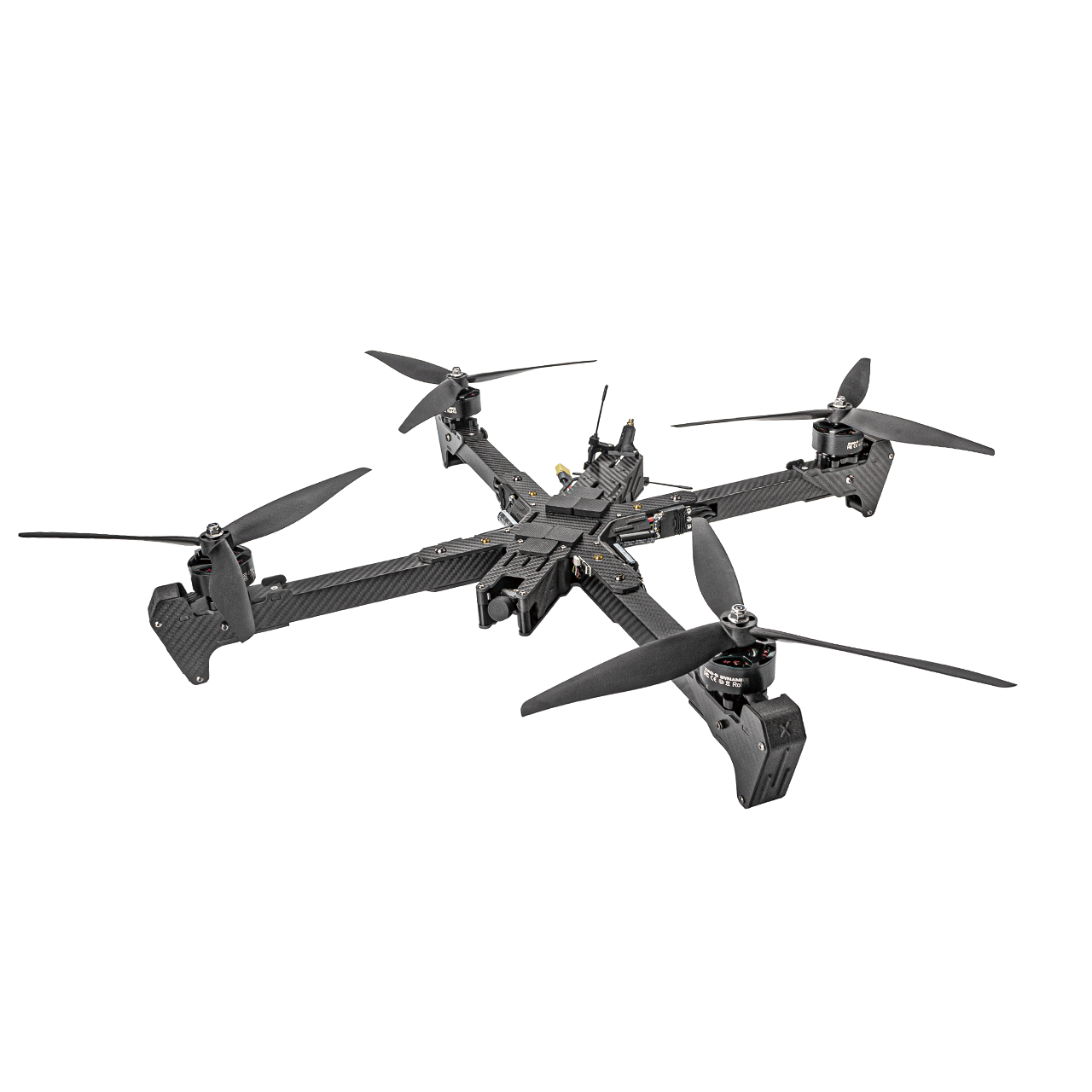

The Fulcrum 13inch Pro Verison is a high-reliability drone platform developed for long-distance and medium loads. The ultra-high-strength carbon fiber square tubes are used as the arm component, making the entire fuselage have extremely high strength and pressure resistance. At the same time, high-performance electronic components are used in combinations, giving it the possibility to perform complex tasks.
Standard Combo Specifications:
- Frame: Fulcrum 13inch Pro square carbon arm verison
- FC: F722 ICM42688P FC
- ESC: AM32 80A(burst 90A) single ESC
- Motor: 4214 660KV(6S)
- Camera: Ratel 2 night vision 1500TVL
- VTX: 4.9-6.2Ghz 3W
- Receiver: ELRS 915Mhz Diversity
- Antenna: 4.9-6.2Ghz RHCP SMA 150mm
- Propeller: 1310-3 blades
Electrical Data:
- Max input voltage: 33.6V(8S Lipo)
- Minimum input voltage: 16.8V(4S Lipo)
- Suggested input voltage: 25.2V(6S Lipo)
- Max current(single motor): 79A
- Max Power(single motor): 1990W
FC Specifications:
- MCU: STM32F722 32-bit processor, 216Mhz
- IMU: ICM42688-P(SPI)
- Barometer:BMP280
- Analog OSD: AT7456E
- Blackbox: Onboard 128MB
- PWM(dshot) output: 8 channels
- UART: 5x
- I2C: 1x(for compass)
- Input voltage: 3-8S Lipo
- Onboard BEC: 12V/2A, 5V/3A
- Connector: Type-C
- Mounting Holes: 30.5mm standard
Machanical Data:
- Dimension: 490*490*120mm
- Weight: 1.75kg
- Operating Temp: -20~45℃
- Flight Time(no payload): 39mins
- Flight Time(5kg payload): 13mins
- Max flight distance(no payload): 45km
- Max flight distance(5kg payload): 15km
- Control distance: 20km(open source)
- Max speed: 160km/h
- Cruising speed: 75km/h
- Maximum Payload: 5kg
